LogicLoom
Write logic in Verilog, synthesize it with Yosys, and let LogicLoom place and route it as a working redstone circuit
What it does
LogicLoom takes a synthesized logic design and automatically builds it out of redstone dust, repeaters, and torches in-game. Instead of hand-wiring gates block by block, you describe your circuit once in Verilog and let the mod handle placement and routing for you. It's much like the way a real chip goes from RTL to a physical layout.
The pipeline
Three commands take a design from source code to placed, routed redstone.
Synthesize
Write your design in Verilog 2001 (or SystemVerilog via the yosys-slang plugin), then run it through the included Synth.ys script with Yosys to produce a JSON netlist.
yosys Synth.ys
Place
Load the netlist and place the cells. Global placement uses a force-directed solver over a clique-model graph of the circuit; a Tetris-style pass then legalizes any remaining overlaps.
/logicloom load_json FILE_PATH
/logicloom place
Route
Wires are routed automatically, choosing the shortest layer and path for every connection while working around obstacles.
/logicloom route
Under the hood
Placement
The circuit's hypergraph is converted into a graph using a clique model, where each connection is weighted by 2/n across n nodes.
A matrix equation (Ax = f + c) is solved per axis every iteration, balancing a spreading force against the pull of fixed points, until cells stop overlapping or the iteration limit is hit.
Routing
Multi-fanout nets are routed with the FLUTE algorithm, building a minimal rectilinear Steiner tree for each one.
Where a straight run is blocked, a Dijkstra-equivalent wave-propagation router finds a path around obstacles, trying each redstone Y-level from the bottom up before moving to the next.
Built with LogicLoom

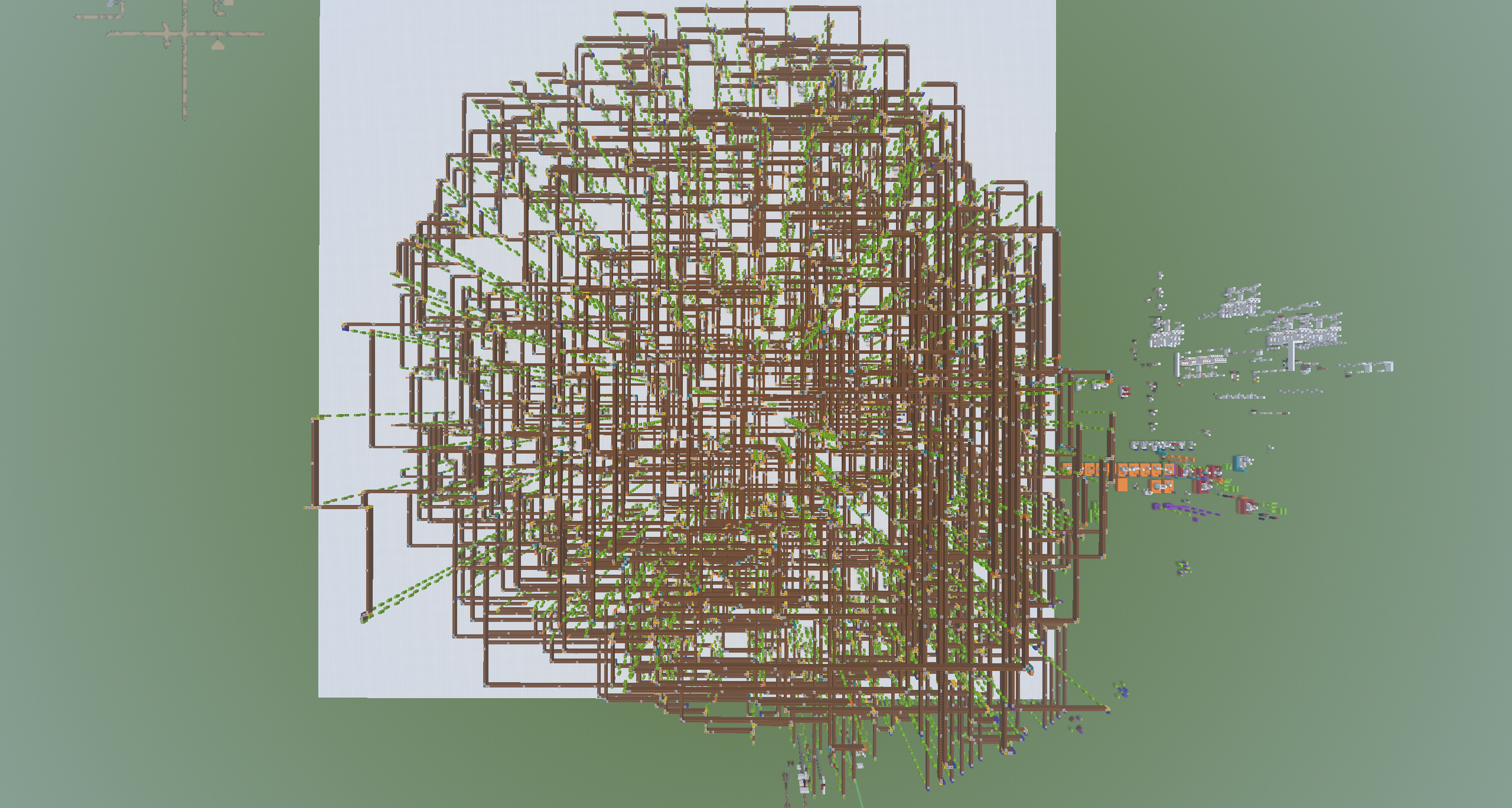

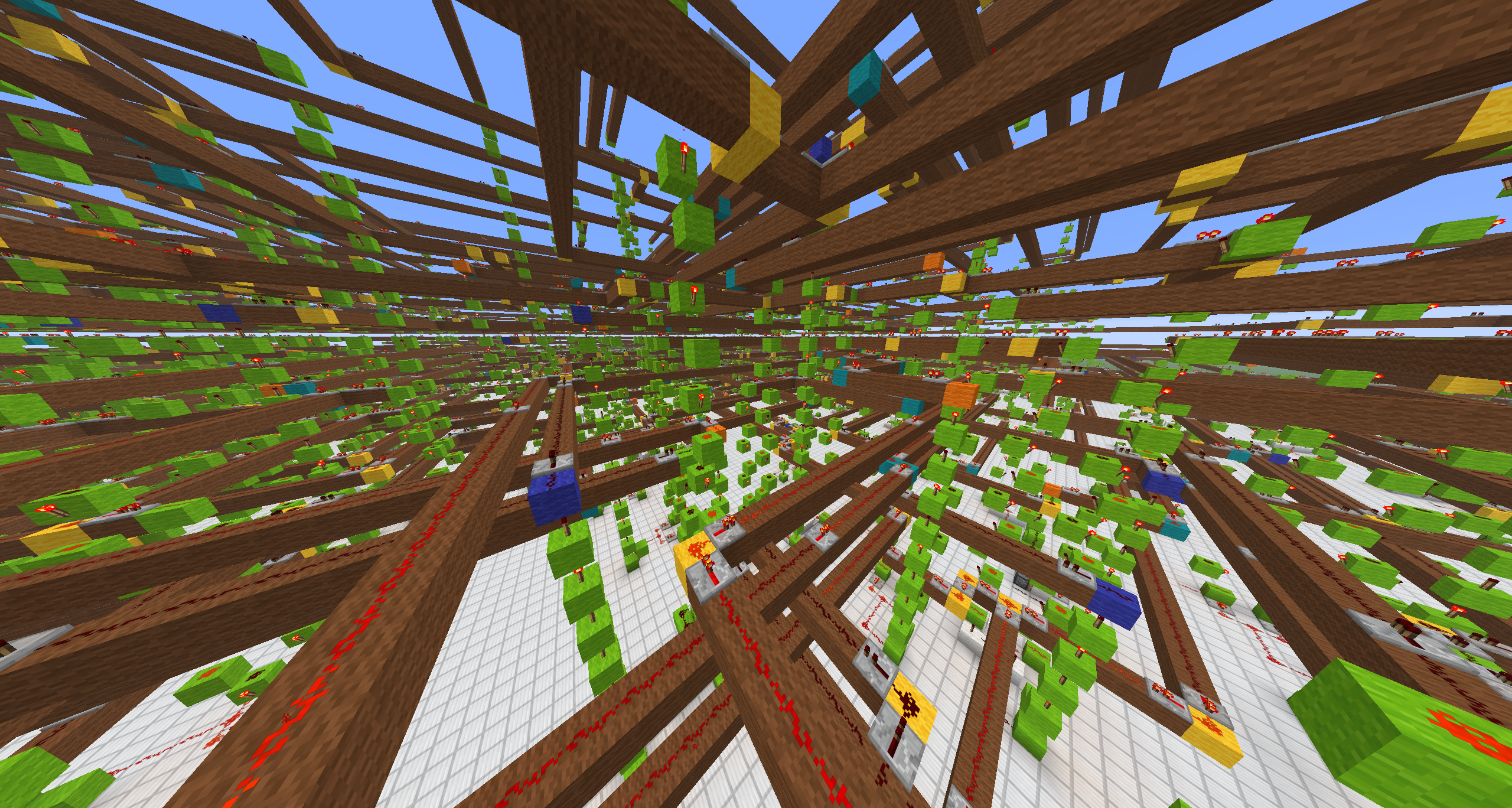

An 8-bit calculator, synthesized from SystemVerilog and placed and routed entirely by the mod — supporting addition, subtraction, multiplication, and division.
Source, setup instructions, and the full command reference live on GitHub.
